Combination Packages
Automatic Back-N-Forth

Single Unit

We have created a simplified Back-N-Forth
unit available in four configurations. The new unit's features are:

• Operates via a simple timing mode for reversing
the Trolley or train on a dedicated section of track.
• provides variable time from a few seconds to
minutes!
• available as a single unit or as a dual unit. Dual
units have separate time controls.
• expansion port provides proper power for utilizing
our Trak-DTT2 to provide for timed stops between
ends.

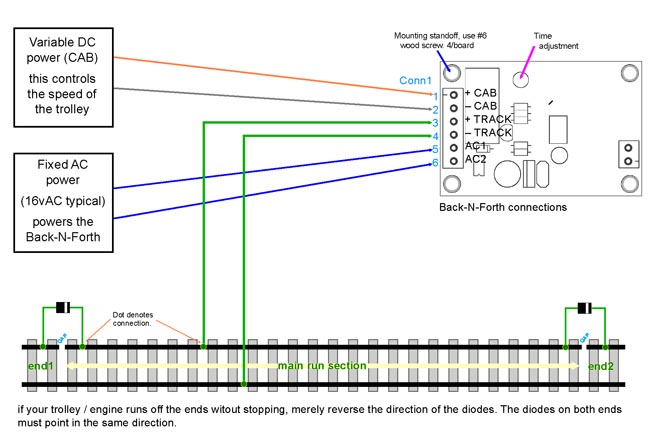

• requires fixed AC input power and Variable DC to
power the trolley / train.

Four systems to fit your needs:

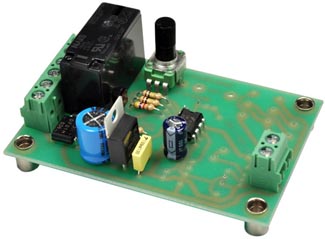

Single Unit (1-track)

#561 - 1 Amp

#563 - 5 Amp

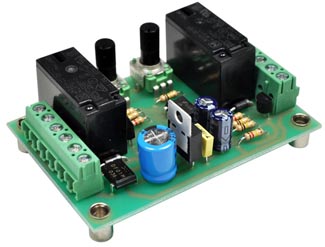

Dual Unit (2-track)

#562 - 1 Amp

#564 - 5 Amp

Items available direct or through qualified dealers.

Double Unit
