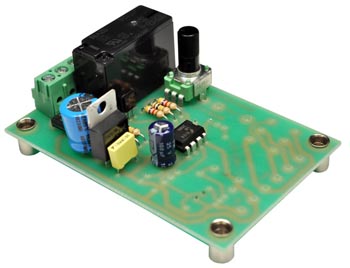

TIMER-1 Item #505 Oscillating on / off

INSTRUCTIONS (PDF file)

The TIMER-1 provides an on/off power sequence of items with equal durations of time. The time can be set from approximately 1 to 90 seconds. You can either have the item that you want to turn on and off start in the "ON" state or "OFF" state. Besides using it as a simple on/off switch, it is also possible to operate a DC switch motor which could be used to operate motion items on your layout. Other time ranges are available on special order. Seperate power of 14-18 volts is required. The relay output can handle up to 5 amperes.

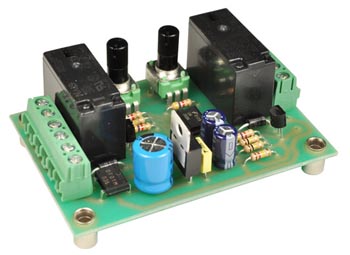

TIMER-2 Item #506 Dual Oscillating on / off Timer

INSTRUCTIONS (PDF file)

The TIMER-2 provides two independent timers on one board. TIMER-2 provides two on/off power sequence of items with equal durations of time. The time for each timer can be set from approximately 1 to 90 seconds. You can either have the item that you want to turn on and off start in the "ON" state or "OFF" state. Besides using it as a simple on/off switch, it is also possible to operate a DC switch motor which could be used to operate motion items on your layout. Since the TIMER-2 contains two independent timers and output's you can do different events with each of them. Other time ranges are available on special order. Seperate power of 14-18 volts is required. The relay output can handle up to 5 amperes.
